If you are looking for precision machinery,processing parts or retrofitting,please contact us.
If you are looking for precision machinery,processing parts or retrofitting,please contact us.

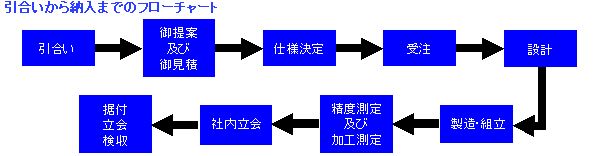

In general,the work described above is what we do for our customers.
We try to ve flexible,so do not hesitate to contact us with any questions you maybe have.
| Spindle type | Hydrostatic air bearing | |
|---|---|---|
| Drive system | X axis・Ｙ axis | Linear motor |
| Ｚaxis・Ａ axis・Ｂ axis | Servo motor | |
| Sliding surface | axis・Ｙ axis | Oil hydrostatic slide |
| Ｚ axis | Linear Guide | |
| Ａ axis・Ｂ axis | Cylindrical roller bearing | |
| Control Axis | Ｘ axis・Ｙ axis・Ｚ axis・Ａ axis・Ｂ axis | |
| Drive axis stroke | Ｘ axis | ２００㎜ |
| Ｙ axis | ８０㎜ | |
| Ｚ axis | １００㎜ | |
| Ａ axis | ±９０° | |
| Minimum setting unit | Ｘ axis・Ｙ axis・Ｚ axis | 0.001μm |
| Ｂ axis | 0.001° | |

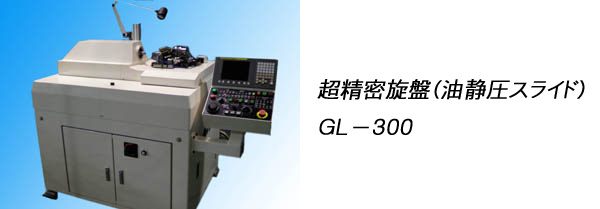

| Spindle type | Hydrostatic air bearing |
|---|---|
| Drive system | Linear motor |
| Sliding surface | Oil hydrostatic slide |
| Control Axis | Ｘ axis・Ｚ axis・Ｃ axis |
| Drive axis stroke | Ｘ２００㎜ Ｚ１３０㎜ |
| Minimum setting unit | Ｘ axis・Ｚ axis：0.001μm Ｃ axis：0.001° |
| Main spindle(lower spindle) | motor | 90～1300min-1 (Forward,reverse,1st/2nd gear changeable) |
| Swing angle | 0°～15°（manual） | |
| 40mm | ||
| Needle axis(upper axis) | Motor | 90～1300min-1 (Forward,reverse,1st/2nd gear changeable) |
| Swing Motor | 2.5～36mm-1 | |
| Swing angle | -15°～15°(axisymmetry) | |
| Vertical Stroke | 50mm(manual) | |
| Polishing・Cleaning | Timer | 0～30min adjustable |
| Machine Size | Height | 465mm |
| Appearance size | 320mm×405mm | |
| Machine weight | Machine body | 25kg |
| Power | Machine body | AC100V 50/60Hz |
